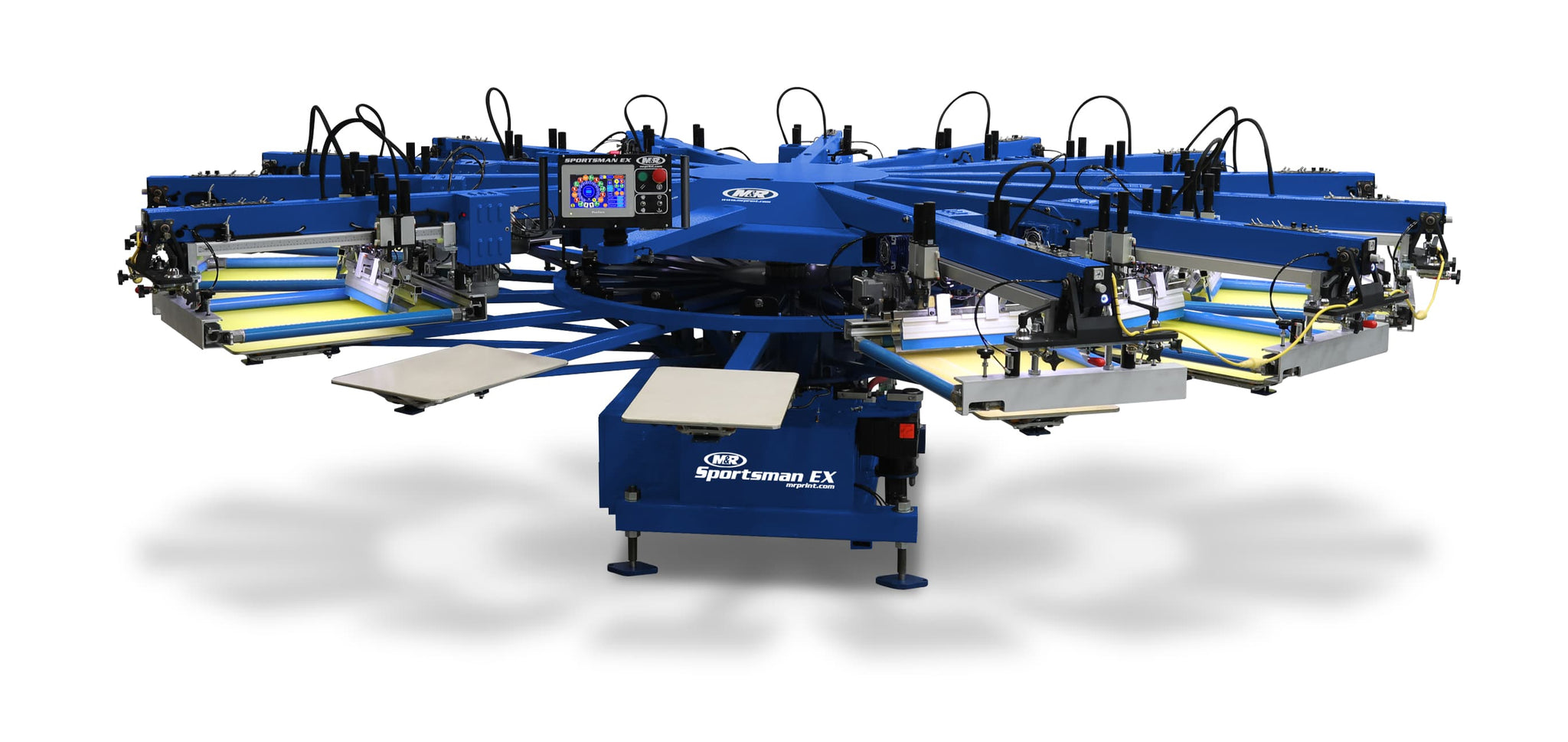

M&R SPORTSMAN EX Automatic Screen Printing Press

M&R’s Sportsman® EX automatic screen printing presses offer exceptional value and quality at an amazingly affordable price. Sportsman EX 4045 is available in 6, 8, 10 and 12-color models with a maximum image area of 41 x 46 cm (16” x 18”). Sportsman EX 5050 is available in 6, 8, 10, and 12-color models with a maximum image area of 51 x 51 cm (20" x 20"). Sportsman EX 5070, featuring double indexing and designed specifically for cut-piece printing, is available in 6, 8, 10, and 12-color models with a maximum image area of 51 x 71 cm (20” x 28”).

• • 6-12 colors
• • Maximum image area: 41 x 46 cm (16” x 18”), 51 x 51 cm (20" x 20") or 51 x 71 cm (20” x 28)”
• • Standard pallet size: 41 x 56 cm (16" x 22"), 56 x 63 cm (22" x 25") or 56 x 76 cm (22” x 30”)

All Sportsman EX screen printing machines feature electric printheads, servo-driven indexers, multiple print-stroke capability, and a new color touchscreen interface with graphical displays and icon-based labeling that can show information and commands in numerous languages, simplifying screen printing and training anywhere in the world. Also included are onboard self-diagnostics and real-time production data display. Sportsman EX 5070 features head supports and strengthened pallet arms for added stability.

The presses are compatible with M&R’s Tri-Loc® Rapid Registration System. M&R’s Laser Locator System speeds pallet positioning and changeover, and it assists operators in the precise positioning of garments and cut-piece goods. Pneumatic clamps hold frames tight and allow rapid screen loading. The squeegee/floodbar park feature facilitates setup and tear-down by simultaneously retracting the squeegee and floodbar and then moving them to the outside edge of the press for easy access. Independent squeegee & floodbar speed adjustments, adjustable rear screen holders, pneumatic squeegee/floodbar locks with tool-free angle adjustment, squeegee air regulators with pressure gauges on each printhead, independently-set angle and calibrated pressure adjustments, and independent print, reset, and print/flood speed controls on each printhead further simplify setup.

Also standard are a tool-free pallet locator system and digital squeegee/floodbar speed displays that enable easy, accurate speed adjustments at a glance. Central Off-Contact permits fast adjustment of all stations simultaneously. M&R’s Revolver Print Program™ automatically operates individual printheads in programmed sequence and allows multiple flashing without losing a printing position. Optional features include M&R’s Optical No-Shirt Detector, which minimizes the misprints and press stoppage that result from improper shirt loading. With their user-friendly touchscreen display and extensive standard-feature set, Sportsman EX automatic screen printing presses are ideal for those seeking unprecedented affordability and versatility.
