With its automatic operation and ergonomic design, the Air Fusion IQ® 16” x 20” was created to make heat printing a breeze. This digital heat press pairs an added air compressor and two-button functionality to reduce operator fatigue and increase output of high-volume custom apparel orders.
Smart IQ® Technology

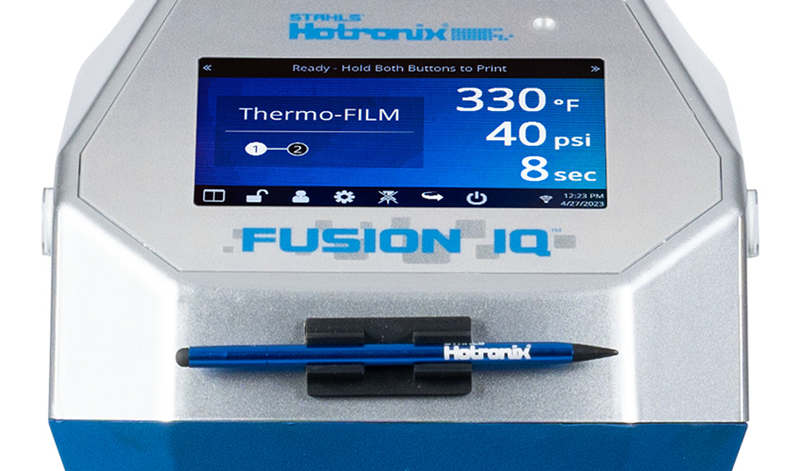

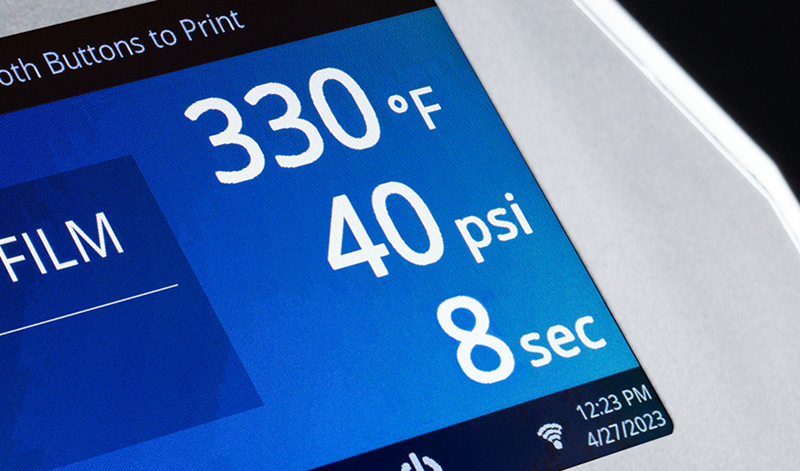

Touchscreen control board with programmable presets, cloud connectivity for operator analytics, and fully digital time, temperature, and pressure readouts.
Threadability™

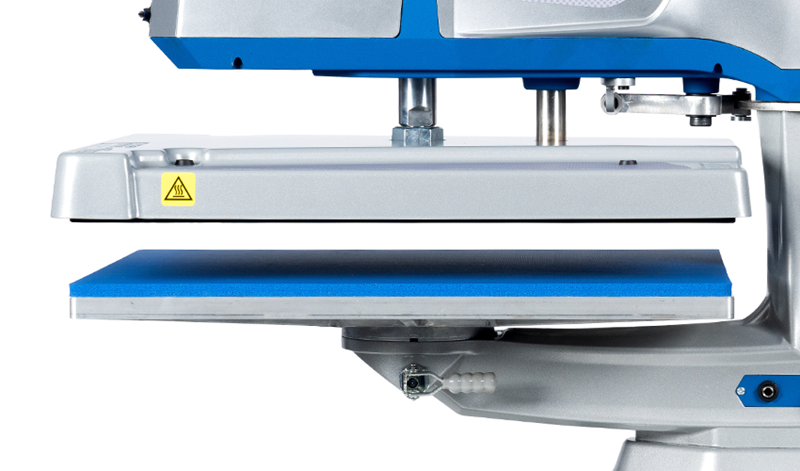

Cantilever design makes it easy to load garments onto the lower platen and decorate any area without removing it from the press

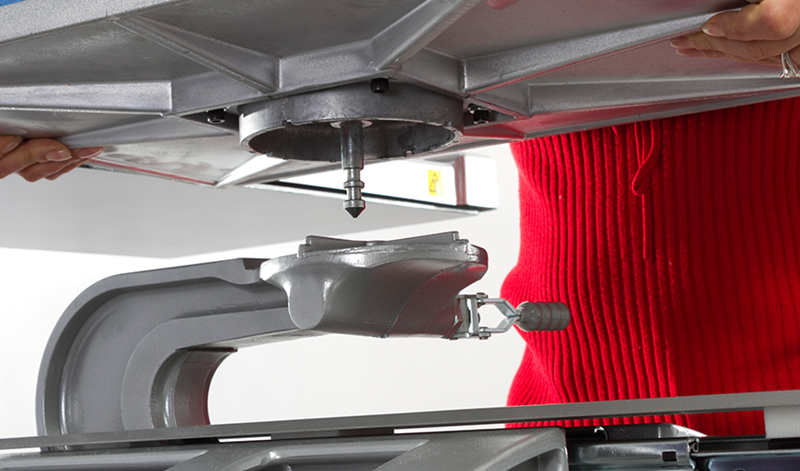

Interchangeable Platens
Print more products and tackle hard-to-decorate areas with ease using a wide variety of platen options.
Auto-Adjust Pressure™
Digital pressure auto-senses and adjusts to the set PSI based on product thickness, eliminating misprints and manual adjustments.

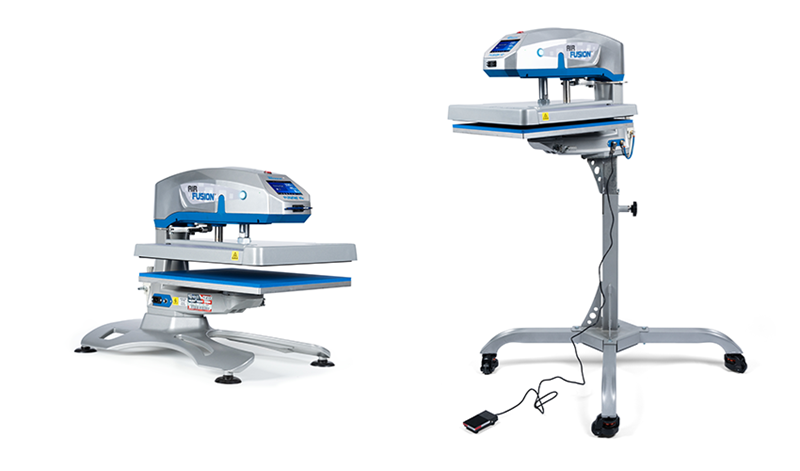

Pedestal or Table Top Models
Choose between a space-saving design or adjustable stand to create an ergonomic workspace.
Specifications
Styles Available

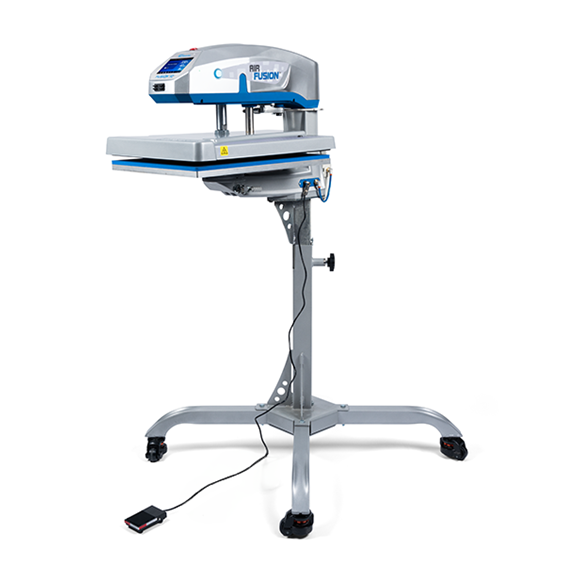

Pedastal
Actual Dimensions: 40" x 32" x 57"
(102 x 81 x 145 cm)
Actual Weight: 152 lbs (69 kg)
Shipping Dimensions: 48" x 40" x 58" (122 x 102 x 147 cm)
Shipping Weight: 245 lbs (111 kg)
Table Top
Actual Dimensions: 34" x 18" x 24"
(86 x 46 x 61 cm)
Actual Weight: 126 lbs (57 kg)
Shipping Dimensions: 37" x 24" x 24" (94 x 61 x 61 cm)
Shipping Weight: 150 lbs (68 kg)
Universal Features
Made in the USA
Cast-in tubular heating
Powder coated finish
Certified by SGS to UL standards
CE/RoHS approved
120 v; 15 amps; 1800 w
240 v; 7.5 amps; 1800 w
*Requires air compressor (not included) with minimum: 1/2 horsepower and 2.5 gallon hold tank. Uses 2.3 CFM.
