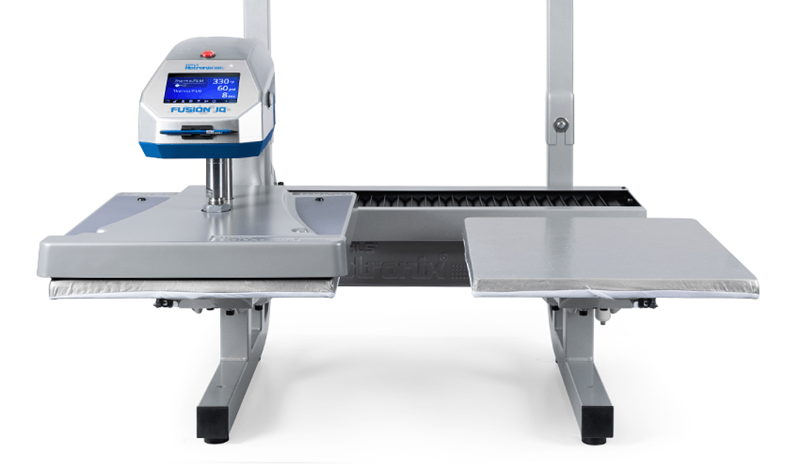

Ultimate Print On Demand Press for High-Paced Production
Built for the ultimate heat printing efficiency, this machine provides the functionality of two heat presses in one. With smooth, effortless operation controlled by the push of a button and tap of a foot pedal, the upper platen shuttles between stations, allowing operators to prepare garments on one while the other is being pressed. Double your heat printing capacity and make the most of your valuable time.

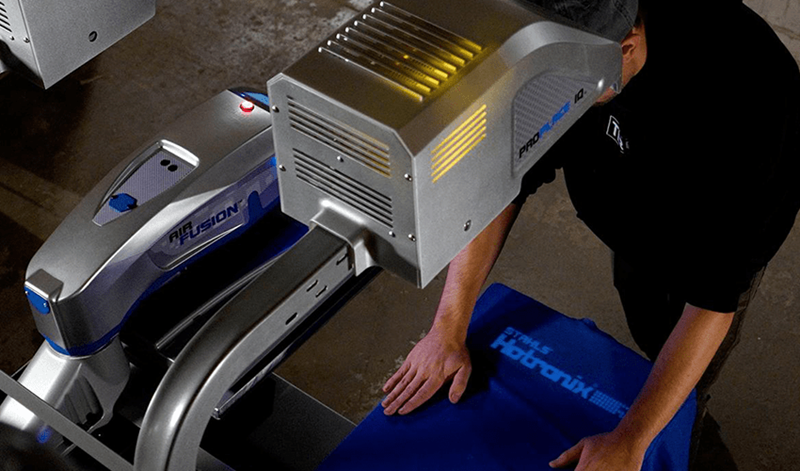

Pro Place IQ® Integration
Projects designs directly onto blanks, ensuring quick and precise alignment every time. This innovation eliminates errors, saves valuable time, and reduces material waste, making it the ultimate choice for maximizing productivity in demanding production settings.

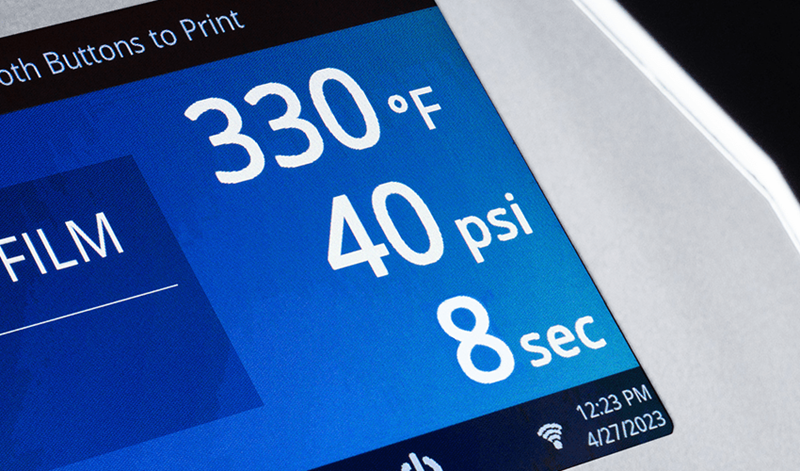

Smart IQ® Technology
Touchscreen control board with programmable presets, cloud connectivity for operator analytics, and fully digital time, temperature, and pressure readouts.
Ultimate Efficiency
With the functionality of two 16" x 20" (40 x 50 cm) heat presses, this innovative machine offers effortless operation controlled by the push of two buttons and tap of a foot pedal.
Auto Adjust Pressure™
Digital pressure is programmable and auto-adjusts based on product thickness, eliminating misprints and manual adjustments.

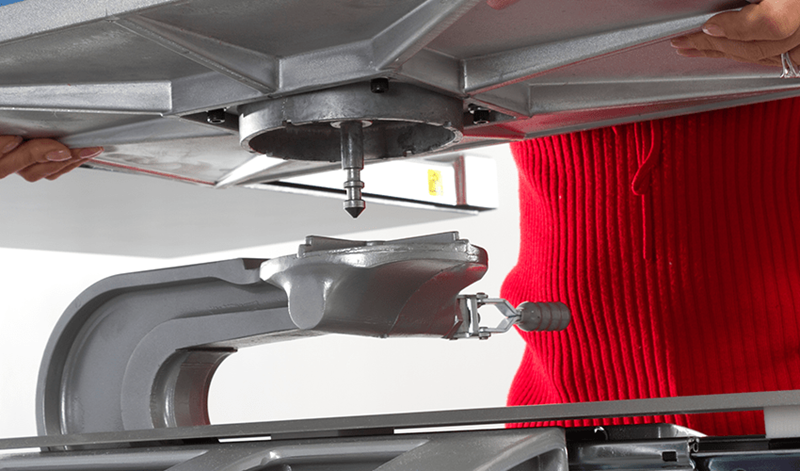

Threadability™ & Interchangeable Platens
Cantilever design makes it easy to swap out lower platen and load garments onto the lower platen to easily tackle any hard-to-decorate area.
Specifications
Styles Available

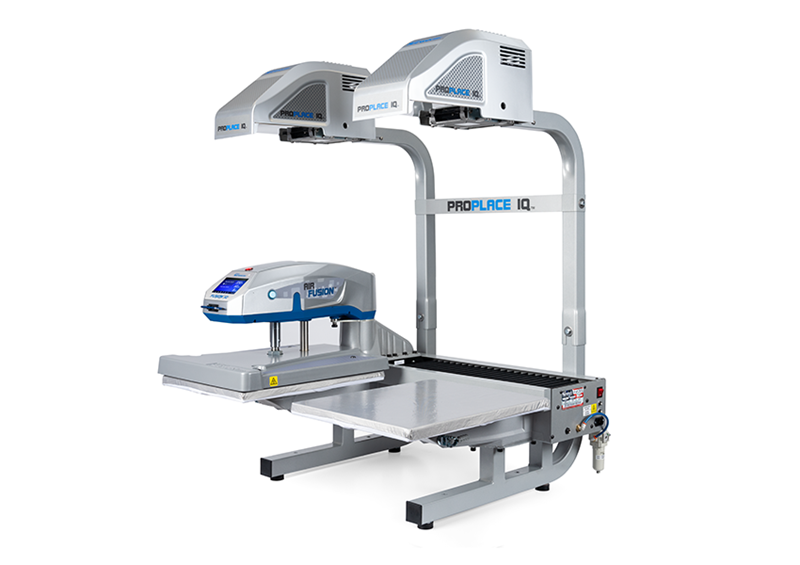

Dual Air Fusion ProPlace IQ™
Actual Dimensions: 38” x 38” x 50”
(97 x 97 x 127 cm) (assembled)
Actual Weight: 291 lbs (132 kg)
Shipping Dimensions: 45" x 45" x 35" (114 x 114 x 89 cm)
Shipping Weight: 443 lbs (201 kg)
Dual Air Fusion IQ® standard
Actual Dimensions: 38" x 38" x 26"
(97 x 97 x 66 cm)
Actual Weight: 260 lbs (118 kg)
Shipping Dimensions: 45" x 45" x 35" (114 x 114 x 89 cm)
Shipping Weight: 410 lbs (186 kg)
Universal Features
Made in the USA
Cast-in tubular heating
Powder coated finish
Certified by SGS to UL standards
CE/RoHS approved
120 v; 15 amps; 1800 w
240 v; 15 amps; 3500 w
*Requires air compressor (not included) with minimum: 1 horsepower and 8 gallon hold tank, 120 PSI. Uses 3.8 CFM.
